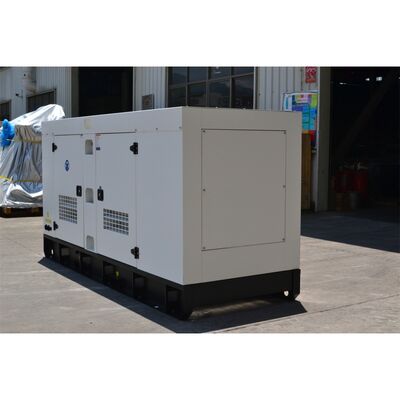

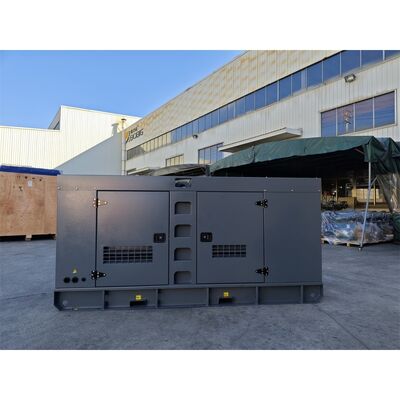

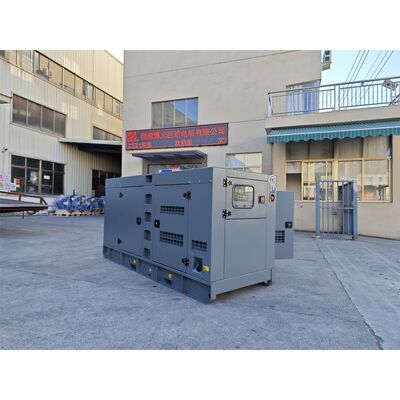

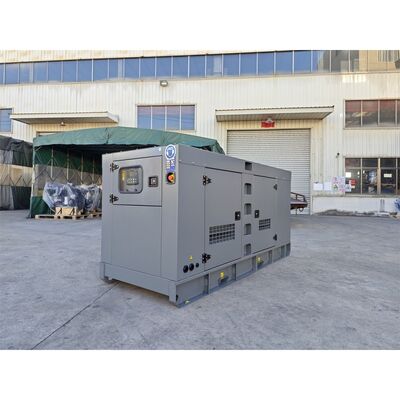

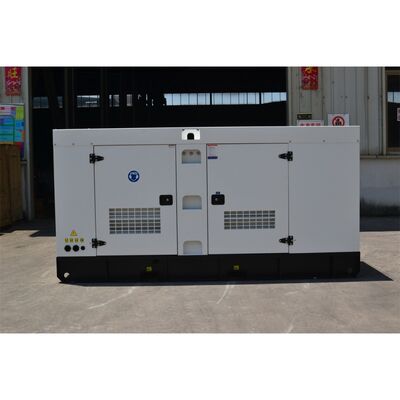

Our 300kW 375KVA BOBIG SDEC diesel generator (Model: SC12E480D2) is designed to provide reliable power for a wide range of applications. Backed by the SDEC brand, it offers high-quality performance and long-term durability.
Rated Power: 300kW (375KVA) with stable and efficient prime power output. Frequency: 50Hz standard operation suitable for most electrical equipment.
Engine Model: SC12E480D2 SDEC engine with advanced technology, high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth and consistent power supply.
| Model | BSD413 | BSD413S |
|---|---|---|
| Type | Open type | Silent type |
| Length (L) mm | 3100 | 4200 |
| Width (W) mm | 1160 | 1300 |
| Height (H) mm | 2150 | 1950 |
| Tank capacity (L) | 690 | 690 |
| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 375 | 413 |
| Power Rating (kW) | 300 | 330 |
| Frequency (Hz) | 50 | |
| Engine Model | SC12E480D2 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Parameter | Specification |
|---|---|
| Engine Model & Manufacturer | SC12E480D2 (SDEC) |
| Engine Type | In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler |
| Combustion Type | Direct injection |
| Cylinder Type | Wet cylinder liner |
| Number of Cylinders | 6 |
| Bore × Stroke | 128 × 153mm |
| Displacement | 11.8 lit. |
| Compression Ratio | 17 : 1 |
| Firing Order | 1-5-3-6-2-4 |
| Fuel Injection Advance Angle | 14°BTDC |
| Dry Weight | 1164 kg |
| Dimension | 1787×918×1287mm |
| Rotation | CCW viewed from flywheel |
| Fly Wheel Housing | SAE 1# |
| Fly Wheel | SAE 14# (number of teeth: 133) |
| Parameter | Specification |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314F |
| Alternator Rated Power | 300kw/375kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after receiving deposit.
Fuzhou port, Fujian province or as customer request.
Yes, we provide regular engine filters for self-maintenance and can supply parts anytime within 3-5 days.
Yes, voltage, frequency, tank capacity, phase, and color can be customized according to your needs.
