Industrial backup power solution featuring Cummins engine, 3-phase operation, and 50/60Hz frequency compatibility. Supports OEM customization.
The 1340kW 1675KVA BOBIG CUMMINS diesel generator (Model: KTA50-G15X) delivers reliable power for industrial, commercial, and residential applications. Built with Cummins engine technology for superior performance and long-term durability.
| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 1675 | 1843 |
| Power Rating (kW) | 1340 | 1474 |
| Frequency (Hz) | 50 | |
| Engine Model | KTA50-G15X | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor | 0.8 | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity | ≥ 8h @ 75% load | |

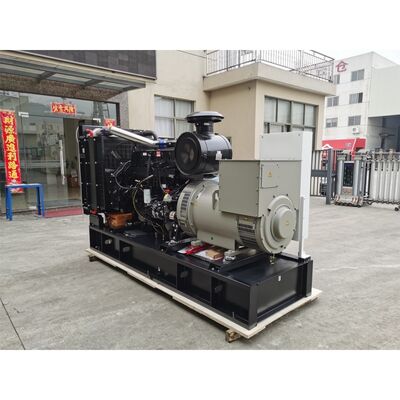

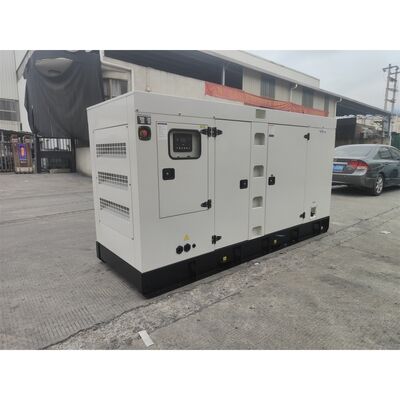

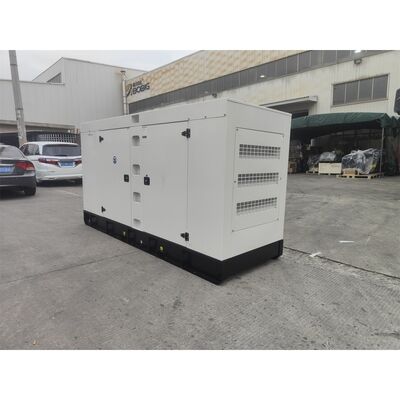

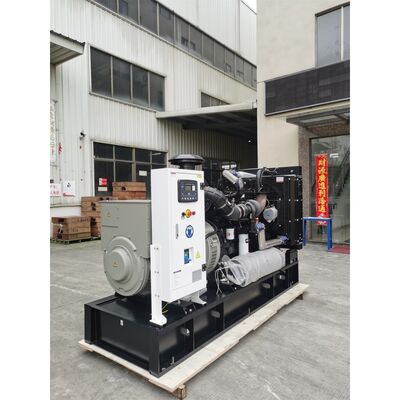

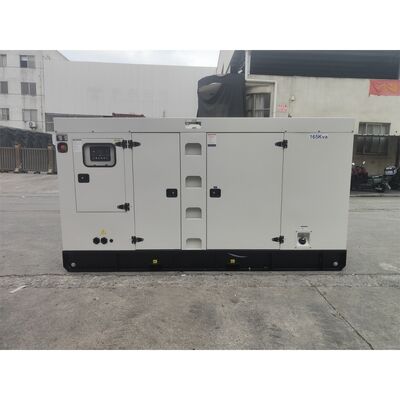

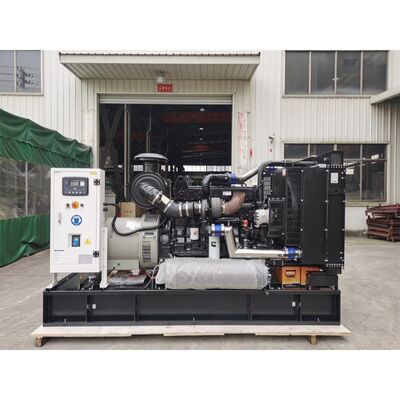

| Model | BC1843 (Open) | BC1843S (Silent) |
|---|---|---|
| Length (mm) | 5600 | 6100 |
| Width (mm) | 2150 | 2250 |
| Height (mm) | 2250 | 3050 |
| Tank Capacity (L) | 3082 | 3082 |
| Parameter | Specification |
|---|---|
| Engine Model & Manufacturer | KTA50-G15X (Cummins) |
| Number of Cylinders | 16 |
| Cylinder Arrangement | In-line |
| Cycle | Four stroke |
| Aspiration | Turbocharged, LTA |
| Bore x Stroke | 159 x 159 mm |
| Displacement | 50.3 L |
| Compression Ratio | 13.9:1 |
| Prime Power/Speed | 1491 kW/1500 rpm |
| Standby Power/Speed | 1657 kW/1500 rpm |
| Fuel System | Cummins PT |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 47.0 L |
| Coolant Capacity (engine only) | 37.0 L |
| Fuel Consumption @ 100% load | 195 g/kWh @1500 rpm |
| Parameter | Specification |
|---|---|
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-454D |
| Rated Power | 1340kw/1675kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.
Customization Support: We support OEM services and customization with design drawings.
Standard Equipment: All units include original power supplies and standard DSE 6120 controller. Engine, generator, and controller options available.
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Cost-based spare parts maintenance available after warranty expiration.
Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
