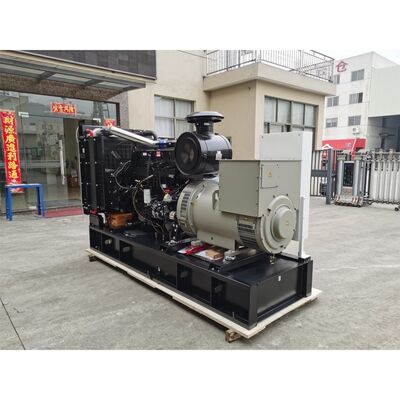

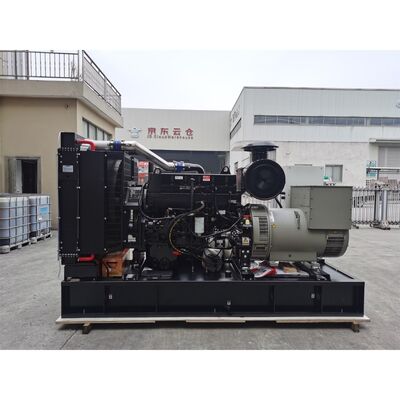

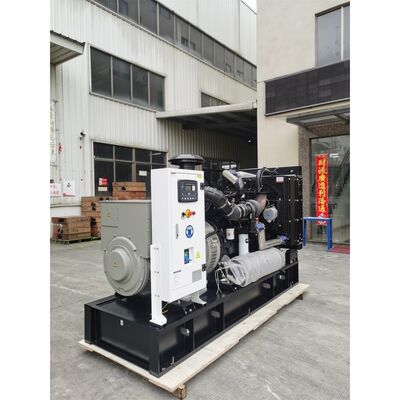

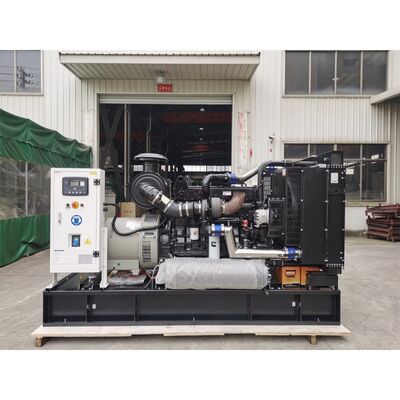

Our 1100kW 1375KVA BOBIG CUMMIN S diesel generator (Model: KTA50-G8) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Rated Power: With a rated power of 1100kW (1375KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.
Engine Model: Powered by the KTA50-G8 CUMMIN S engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.
Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.
| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 1375 | 1513 |
| Power Rating (kW) | 1100 | 1210 |
| Frequency (Hz) | 50 | |
| Engine Model | KTA50-G8 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BC1100 (Open Type) | BC1375S (Silent Type) |
|---|---|---|
| Length (mm) | 5600 | 6100 |
| Width (mm) | 2150 | 2250 |
| Height (mm) | 2550 | 3050 |
| Tank Capacity (L) | 2530 | 2530 |
| Engine Model & Manufacturer | KTA50-G8 (Cummin s) |
| Number of Cylinders | 16 |
| Cylinder Arrangement | In-line |
| Cycle | Four Stroke |
| Aspiration | Turbocharged and Low Temperature Aftercooled |
| Bore x Stroke | 159 x 159 mm |
| Displacement | 50.3 L |
| Compression Ratio | 14.9:1 |
| Prime Power/Speed | 1200 kW/1500 rpm |
| Standby Power/Speed | 1333 kW/1500 rpm |
| Fuel System | Cummin s PT |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 47 L |
| Coolant Capacity (engine only) | 43.5 L |
| Fuel Consumption @ 100% Load | 197 g/kWh @1500 rpm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-454B |
| Alternator Rated Power | 1100kw/1375kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
Ambient Temperature: It can operate effectively in an ambient temperature range of +5°C to +40°C.
Altitude: The generator is suitable for use at altitudes of up to 1000m. Customized solutions available for different environmental conditions.
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.
