| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 313 | 344 |
| Power Rating (kW) | 250 | 275 |
| Frequency (Hz) | 50 | |
| Engine Model | MTAA11-G3 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

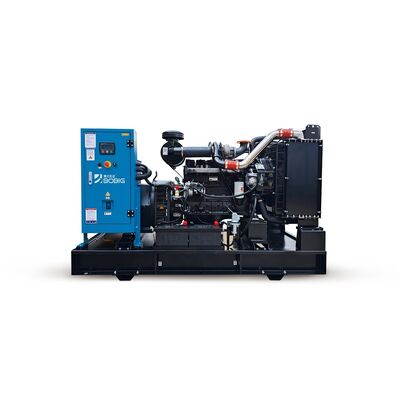

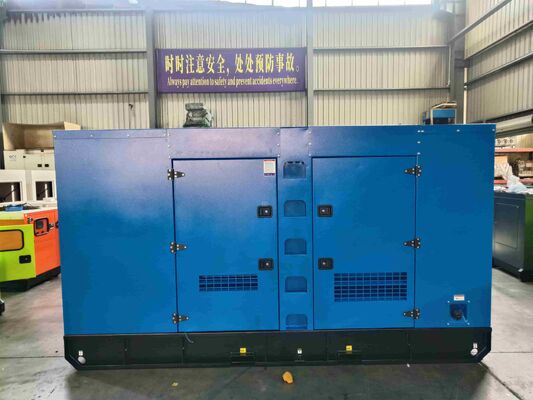

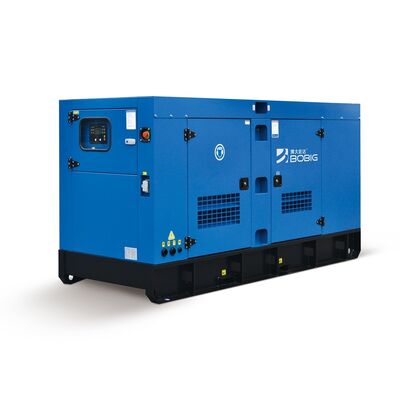

| Model | BC344 (Open Type) | BC344S (Silent Type) |
|---|---|---|
| Length (mm) | 3050 | 3900 |
| Width (mm) | 1140 | 1400 |
| Height (mm) | 1880 | 1950 |
| Tank Capacity (L) | 575 | 575 |
| Engine Model & Manufacturer | MTAA11-G3 (Cummin s) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four stroke |
| Aspiration | Turbocharged and Charged Air Cooled |
| Bore x Stroke | 125 x 147 mm |
| Displacement | 10.8 L |
| Compression Ratio | 15.0:1 |
| Prime Power/Speed | 282 kW/1500 rpm |
| Standby Power/Speed | 313 kW/1500 rpm |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314DS |
| Rated Power | 250kw/313kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Insulation Class | H class |
