| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 250 | 275 |
| Power Rating (kW) | 200 | 220 |
| Frequency (Hz) | 50 | |
| Engine Model | NT855-GA | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

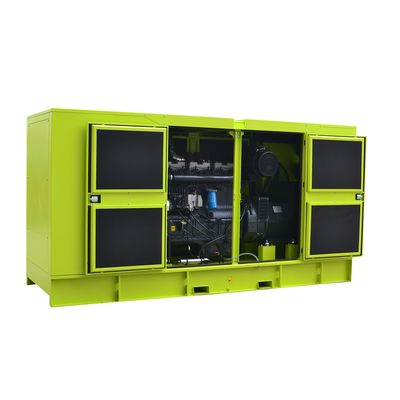

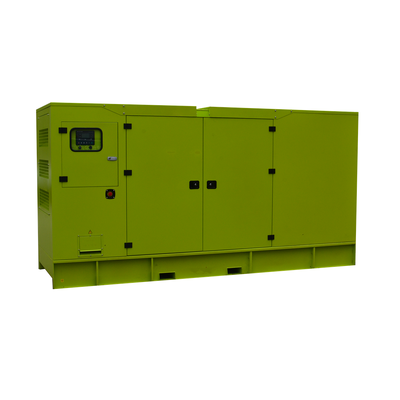

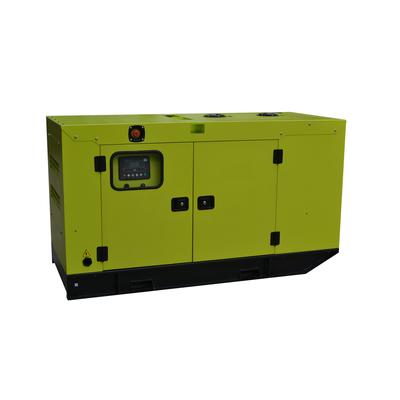

| Model Type | BC275 (Open) | BC275S (Silent) |
|---|---|---|
| Length (mm) | 3050 | 4200 |
| Width (mm) | 1140 | 1400 |
| Height (mm) | 1880 | 2120 |
| Tank Capacity (L) | 460 | 460 |
| Engine Model & Manufacturer | NT855-GA (Cummin s) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | Four stroke |
| Aspiration | Turbocharged |
| Bore x Stroke | 140 x 152 mm |
| Displacement | 14 L |
| Compression Ratio | 15.0:1 |
| Prime Power/Speed | 231 kW/1500 rpm |
| Standby Power/Speed | 257 kW/1500 rpm |
| Speed Governor | PT |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 36 L |
| Coolant Capacity (engine only) | 20.8 L |
| Fuel Consumption @ 100% load | 192 g/kWh @1500 rpm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274K |
| Alternator Rated Power | 200kw/250kva |
| Rated Voltage | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
