| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 50 | 55 |
| Power Rating (kW) | 40 | 44 |
| Frequency (Hz) | 50 | |
| Engine Model | Y4102ZLD | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

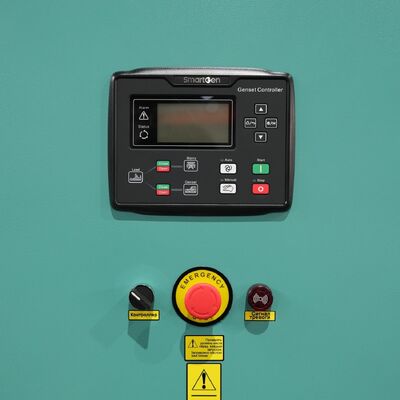

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

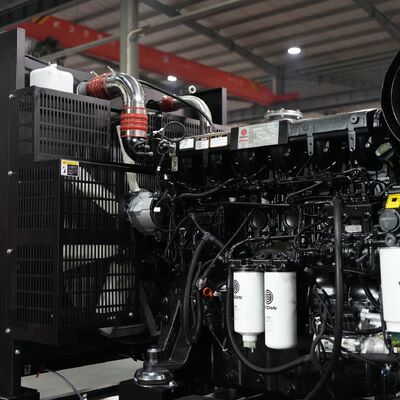

| Engine Specifications | Details |
|---|---|
| Engine Model & Manufacturer | Y4102ZLD (YANGDONG) |
| No. of Cylinders | 4 |
| Injection Type | Direct |
| Aspiration | Turbocharged |
| Configuration | Vertical |
| Bore | 102 mm |
| Stroke | 118 mm |
| Compression Ratio | 18 |
| Displacement | 3.875 L |
| Dry Engine Weight | 340 kg |
| Dimension (L*W*H) | 687*949*610 mm |
| Alternator Specifications | Details |
|---|---|
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-224D |
| Rated Power | 40kW/50kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Protection Grade | IP23 |
| Insulation Class | H class |

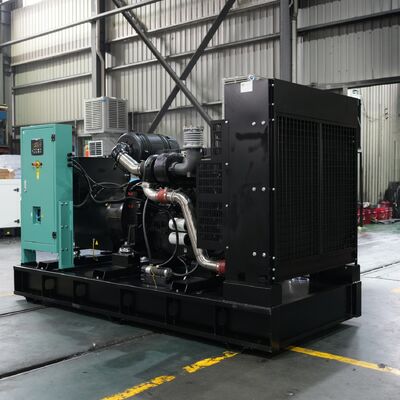

| Dimension and Weight | Open Type (BY55) | Silent Type (BY55S) |
|---|---|---|
| Length (mm) | 1850 | 2350 |
| Width (mm) | 730 | 880 |
| Height (mm) | 1350 | 1150 |
| Tank Capacity (L) | 92 | 92 |
