Our 300kW 375KVA BOBIG FAWDE diesel generator (Model: CA6DM3J-48D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.
Rated Power: With a rated power of 300kW (375KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.
Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.
Engine Model: Powered by the CA6DM3J-48D FAWDE engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.
Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 375 | 413 |
| Power Rating (kW) | 300 | 330 |
| Frequency (Hz) | 50 | |
| Engine Model | CA6DM3J-48D | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

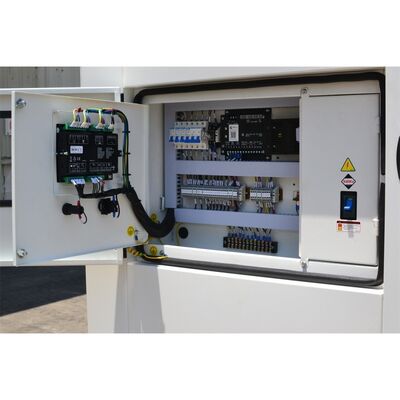

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Engine Model & Manufacturer | CA6DM3J-48D(FAWDE) |
|---|---|
| Engine Model | CA6DM3J-48D |
| No. of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 Stroke |
| Aspiration | Turbocharged & Intercooled |
| Cooling System | Water-cooled |
| Bore | 126.5 mm |
| Stroke | 166 mm |
| Compression Ratio | 18:01 |
| Displacement | 12.52 L |
| Dry Engine Weight | 1100 kg |
| Dimension (L*W*H) | 1776*922*1081 |
| Alternator Specifications | |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314F |
| Alternator Rated Power | 300kw/375kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |

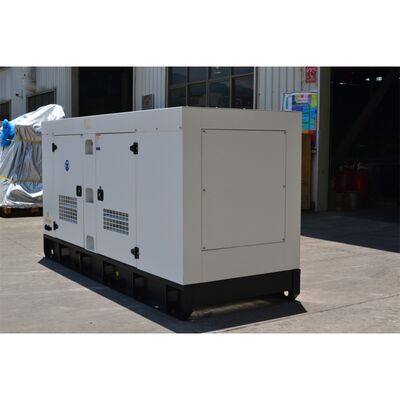

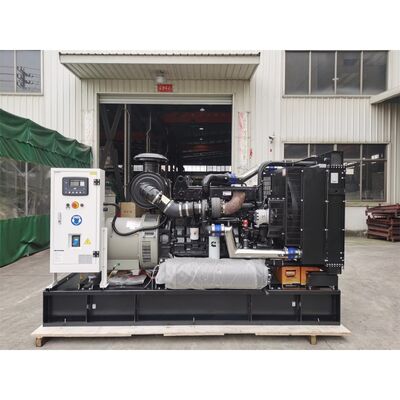

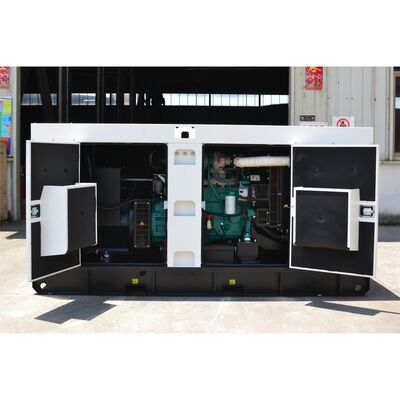

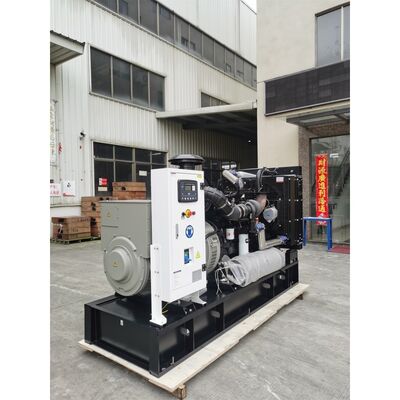

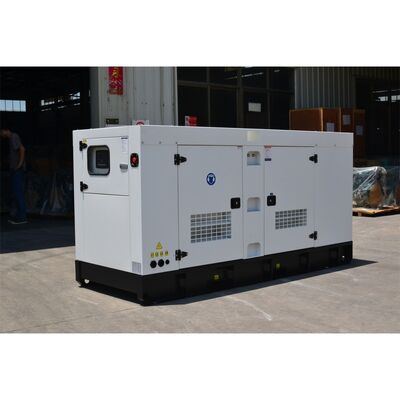

| Dimension and Weight | Open Type (BFA413) | Silent Type (BFA413S) |
|---|---|---|
| Length (L) mm | 3000 | 3900 |
| Width (W) mm | 1300 | 1220 |
| Height (H) mm | 1900 | 1950 |
| Tank Capacity (L) | 690 | 690 |
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from the ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
