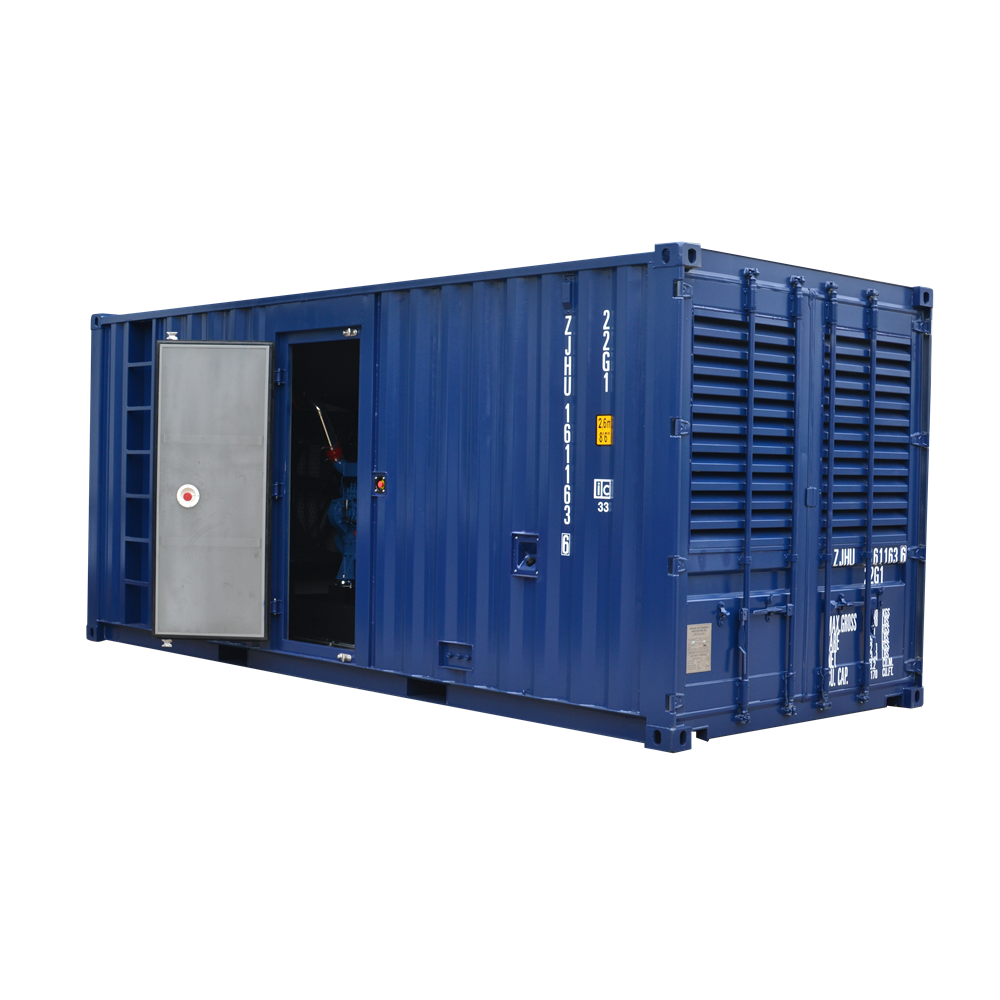

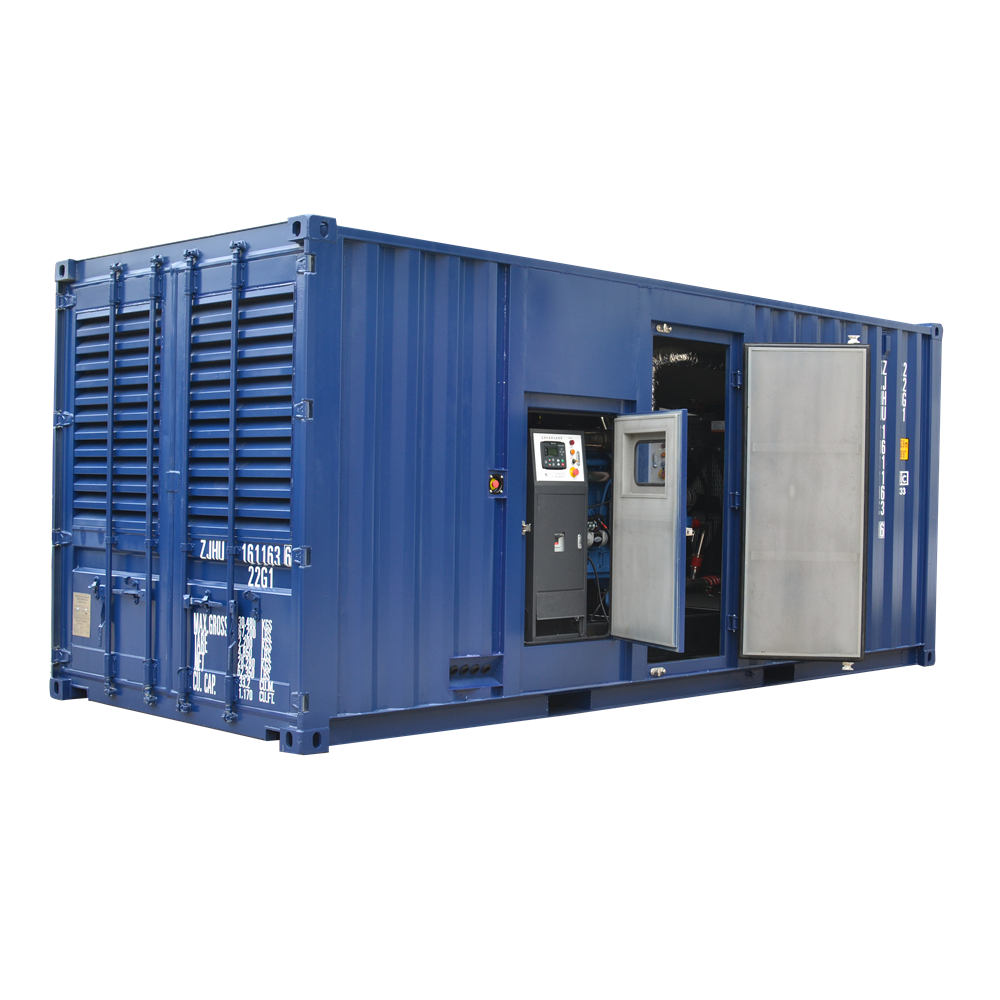

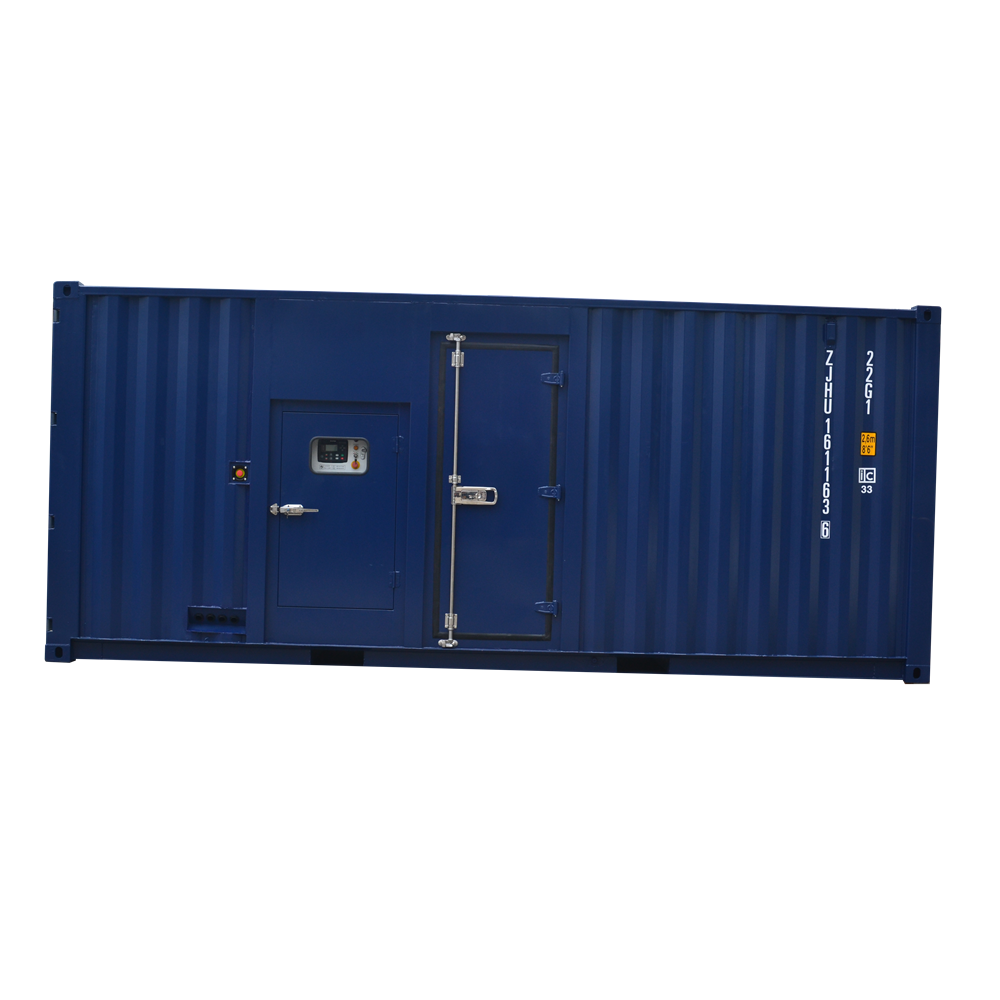

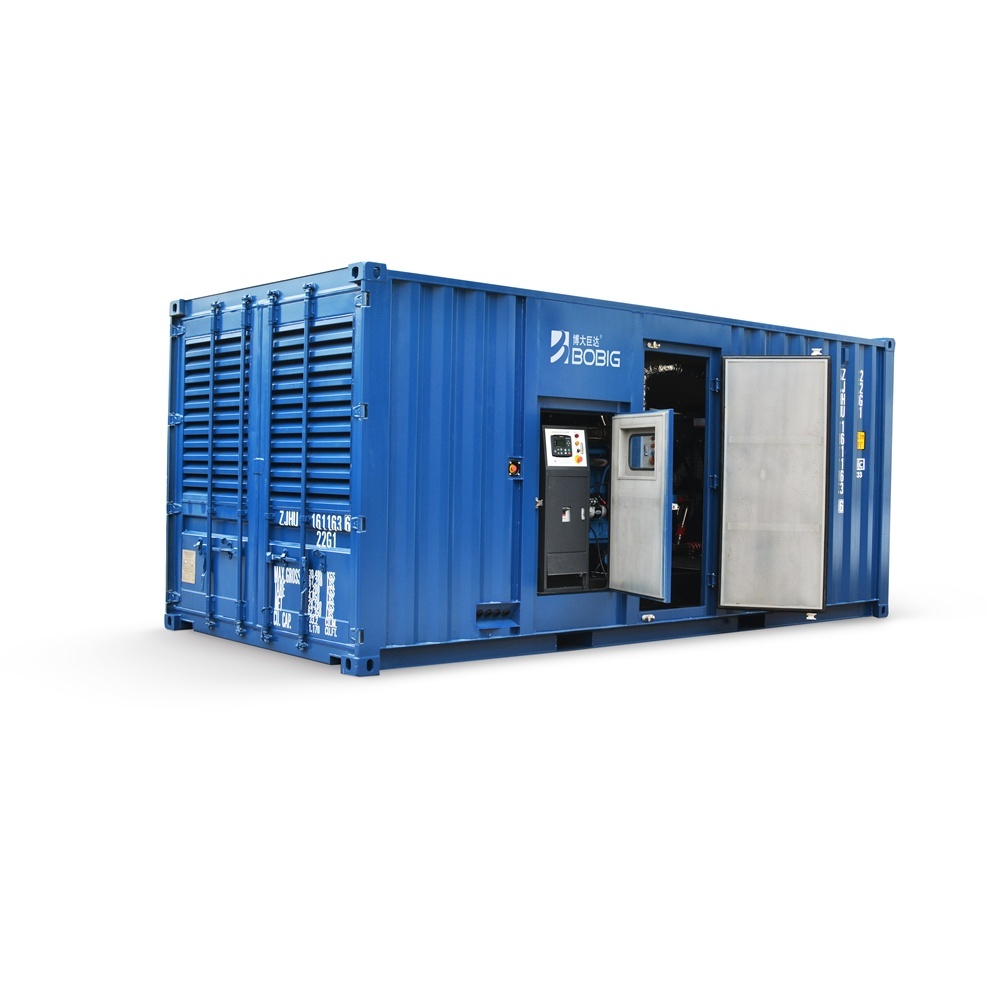

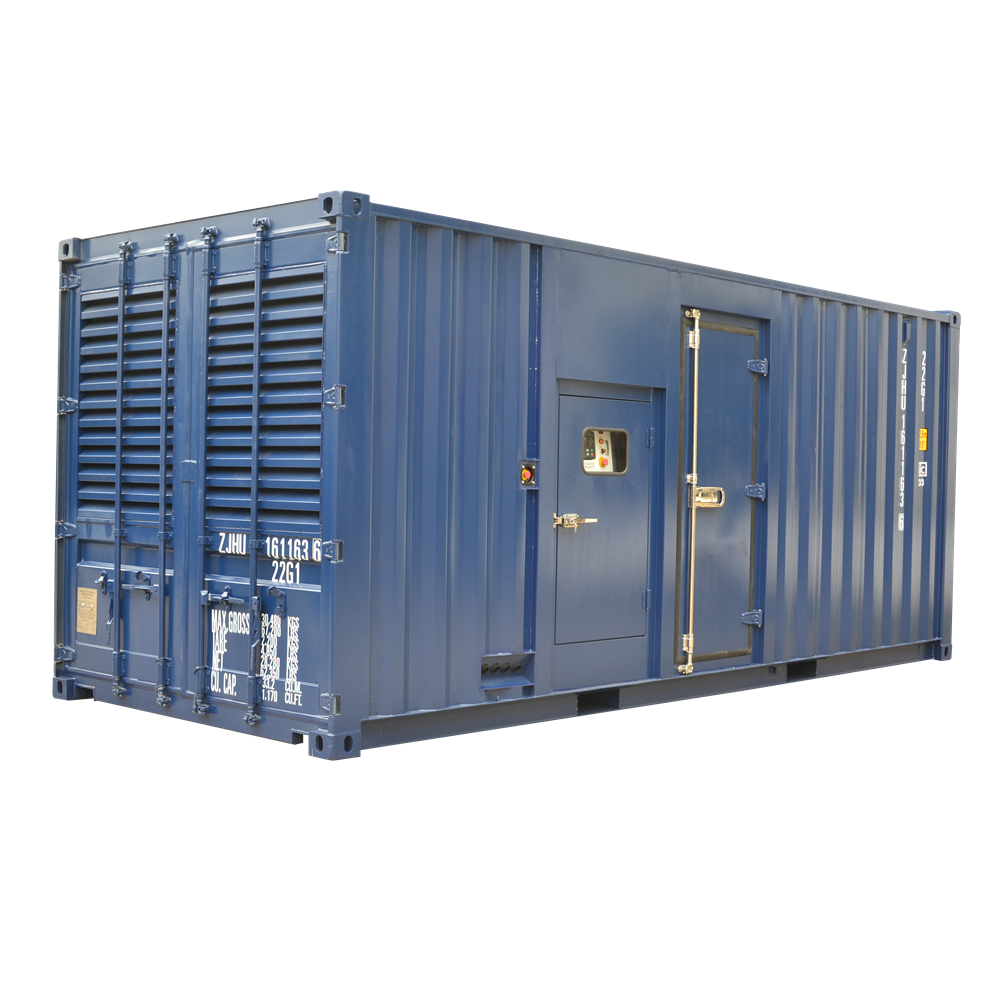

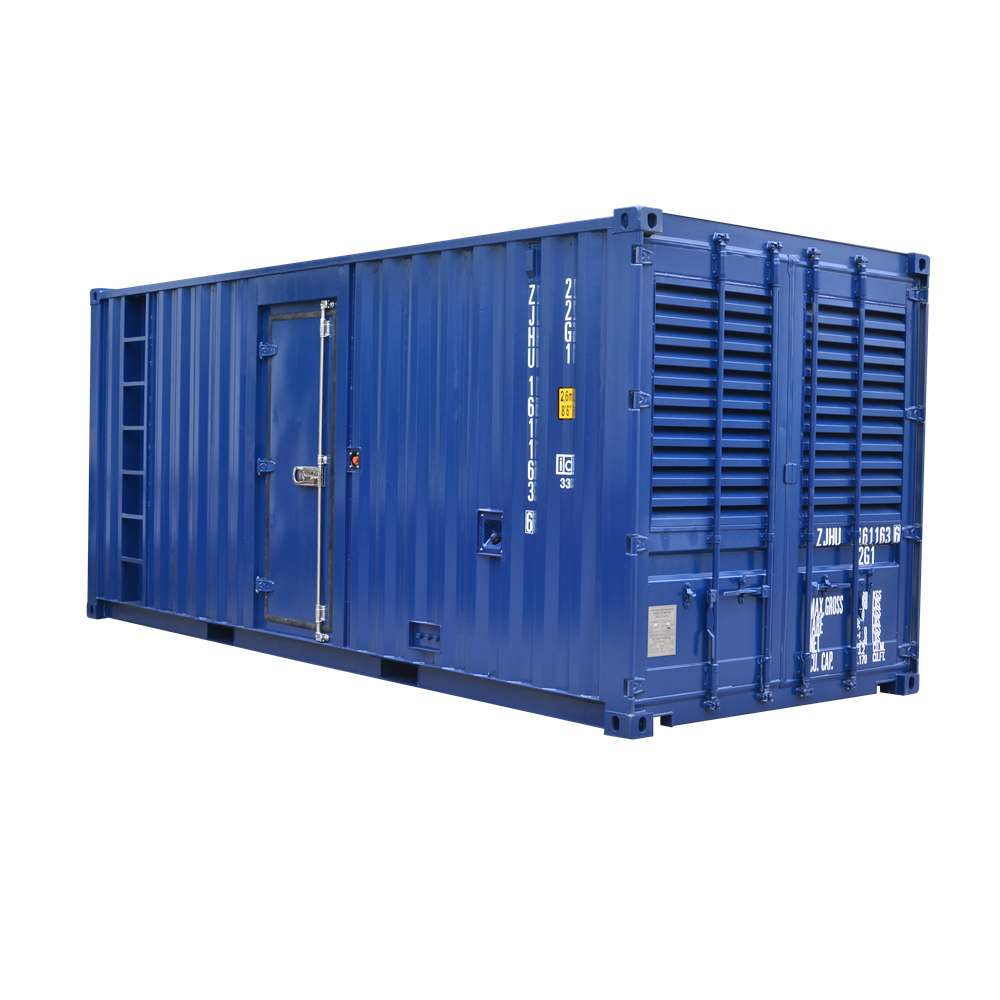

Our 2000kW 2500KVA BOBIG WEICHA diesel generator (Model: 12M55D2450E310) is engineered to deliver reliable power for diverse applications. Backed by the trusted Weichai brand, this generator offers exceptional performance and long-term durability.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 2500 | 2750 |
| Power Rating (kW) | 2000 | 2200 |
| Frequency (Hz) | 50 | |
| Engine Model | 12M55D2450E310 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Engine Model & Manufacturer | 12M55D2450E310 (WEICHAI) |
| Number of Cylinders | 12 |
| Cylinder Arrangement | In-line |
| Aspiration | Turbocharging and intercooling |
| Bore x Stroke | 180 x 215 mm |
| Cubic Capacity | 65.65 L |
| Compression Ratio | 16.5:1 |
| Fuel Consumption (100% load) | 2200 g/kWh @1500 rpm |
| Alternator Brand | BOBIG |
| Alternator Model | BW-454H |
| Rated Power | 2000kW/2500kVA |
| Protection Grade | IP23 |
| Insulation Class | H class |
| Voltage Regulation | ≤±1% |
| Model | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| BWC2750 (Open type) | 7280 | 2715 | 3164 |
| BWC2750S (Silent type) | 6100 | 2250 | 3050 |
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
We are an electrical machinery manufacturer integrating technological research, production, and sales. With a 10,000 square meter facility and 160 employees including 20 technicians, we specialize in gasoline generators, diesel generators (5-2000kVA), gas generators, and pumps.
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.
Fuel Tank Capacity: ≥ 8 hours operation at 75% load
PRP (Prime Power): Available for unlimited annual hours in variable load applications with 10% overload capability for 1 hour within 12-hour operation
ESP (Standby Power): For emergency power supply during utility interruptions
